ASME SB163 N02200 Alloy 200 Nickel Alloy Seamless Tube For Heat Exchanger

Brand Name : YUHONG

Model Number : ASME SB163 UNS N02200

Certification : ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008

Place of Origin : China

MOQ : 1000KGS

Payment Terms : T/T,L/C

Supply Ability : 600 tons per month

Delivery Time : Depends on quantity

Packaging Details : Ply-wooden Case /Iron Case/ Bundle with plastic Cap/Woven Case

Price : Negotiable

Specification : ASME SB163, ASTM B163, EN10216-5 , GOST9941-91, JIS 3459, DIN17458

Grade : N02200

Type : Seamless

Surface : Pickled and Annealed, Polished, Bright Annealed

Non Destructive Test : Eddy Current Test -ASTM E426, Hystostatic Test-ASTM A999, Ultrsonic Test -ASTM E213

Size Standard : ASTM B16.10 & B16.19 & Customized

Contact Now

ASME SB163 N02200 Alloy 200 Nickel Alloy Seamless Tube For Heat Exchanger

Tubes produced from nickel 200 exhaust heat exchanger permits operations such as fabrication with sound welds to be constructed. This is a particularly useful characteristic, especially when the 200 Nickel Heat Exchanger Tube is used for applications which involve the caustic concentration sector. The material for Nickel 200 Sanitary Tube has been used for the transportation of various chemicals as well as in the manufacture of aerospace components.

Designed as per international and national standards, these Nickel 200 Seamless Tubes are offered in customized length sizes and shapes to our esteemed clients.

They have some of the first rate mechanical properties along with an excellent resistance to a lot of corrosive environments.Also referred as UNS N02200, we offer these Nickel Seamless Tubes at best possible rates in the market.

Chemical Properties

Grade ASTM B163 Nickel 200
min max
C – 0.15
Mn – 0.35
Si – 0.1
P – –
S – 0.01
Mg – –
Ti – –
Ni 99.0 –
Cu – 0.25
Fe – 0.4

Mechanical Behaviour

Grade ASTM B163 Nickel 200
Tensile Strength (MPa) min Psi – 67000 , MPa – 462
Yield Strength 0.2% Proof (MPa) min Psi – 21500 , MPa – 148
Elongation (% in 50mm) min 45%

Equivalent Material

Grade ASTM B163 Nickel 200
UNS No N02200
Old British BS NA 11
En Ni 99.2
Euronorm No 2.4066
Name –
AFNOR N-100M
Japanese JIS NW 2200
GOST НП-2

Pressure Rating Of Alloy 200 Tubing

Tube O.D.
(in.)		 Wall Thickness of Tube (inches)
.028 .035 .049 .065 .083 .095 .109 .120
Working Pressure (psig)
1/8 7900 10100
1/4 3700 4800 7000 9500
5/16 3700 5400 7300
3/8 3100 4400 6100
1/2 2300 3200 4400
3/4 2200 3000 4000 4600
1 2200 2900 3400 3900 4300

Applications

-Petrochemical
-Oil Well/oilfield
-Energy Poly Silicon Shipyard/Shipbuilding
-Boiler Heat Exchange
-Environmental Protection
-Nuclear Power
-Chemical Fertilizer
-Energy Equipment
-Oil Refining

ASME SB163 N02200 Alloy 200 Nickel Alloy Seamless Tube For Heat Exchanger


Product Tags:

Seamless Nickel Alloy Pipes



Ni200 Alloy Seamless Tube



High Nickel Alloy Seamless Pipe


Quality ASME SB163 N02200 Alloy 200 Nickel Alloy Seamless Tube For Heat Exchanger for sale

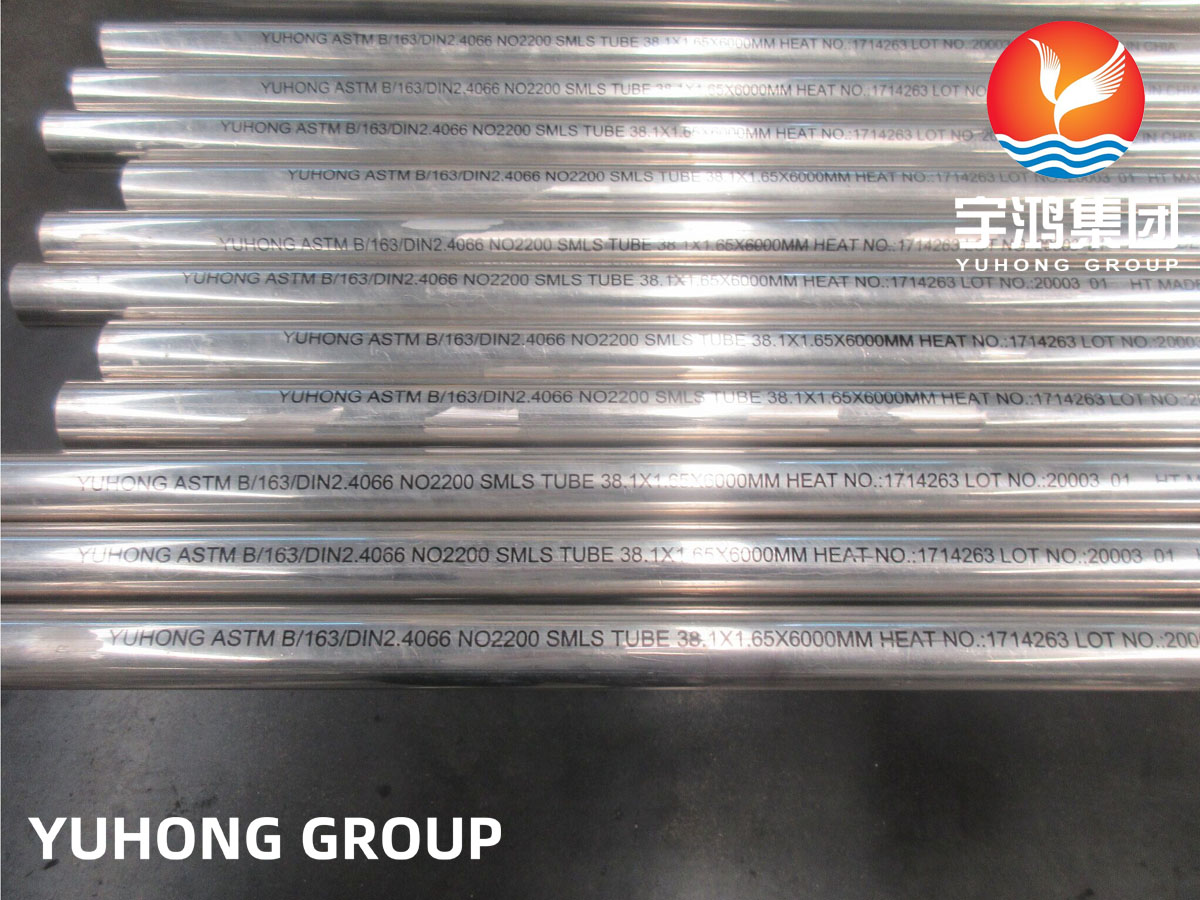

ASME SB163 N02200 Alloy 200 Nickel Alloy Seamless Tube For Heat Exchanger Images
